Arvitek 4K HDMI Matrix Switch available in 4 in 4 out, 8 in 8 out & 16 in 16 out
- Used to connect the audio/video input signals to any output channel of the audio/video synchronously or asynchronously.
- Widely used in server rooms, data management centers, exhibition centers, command and control centers, security monitoring and others.
- 4x4 & 8x8 HDMI Video Matrix Switcher can use for 1U server rack, 16x16 HDMI Video Matrix Switcher can use for 2U server rack.
Arvitek 4K HDMI Matrix Switcher 4x4:
- Support EDID function, resolution up to 4K*2K@30Hz, 1080P@60Hz, 3D.

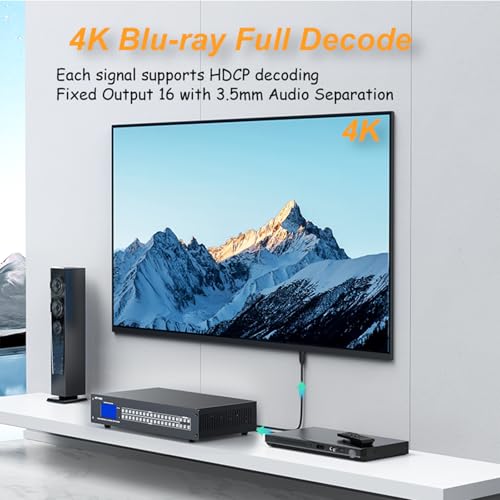

- Supports HDCP1.4 decoding, Blu-ray, 3D.
- Use 3.4G high-bandwidth original switching chip
- Support 3.5mm audio output and built-in audio synchronized outputs: external speakers, mixing console

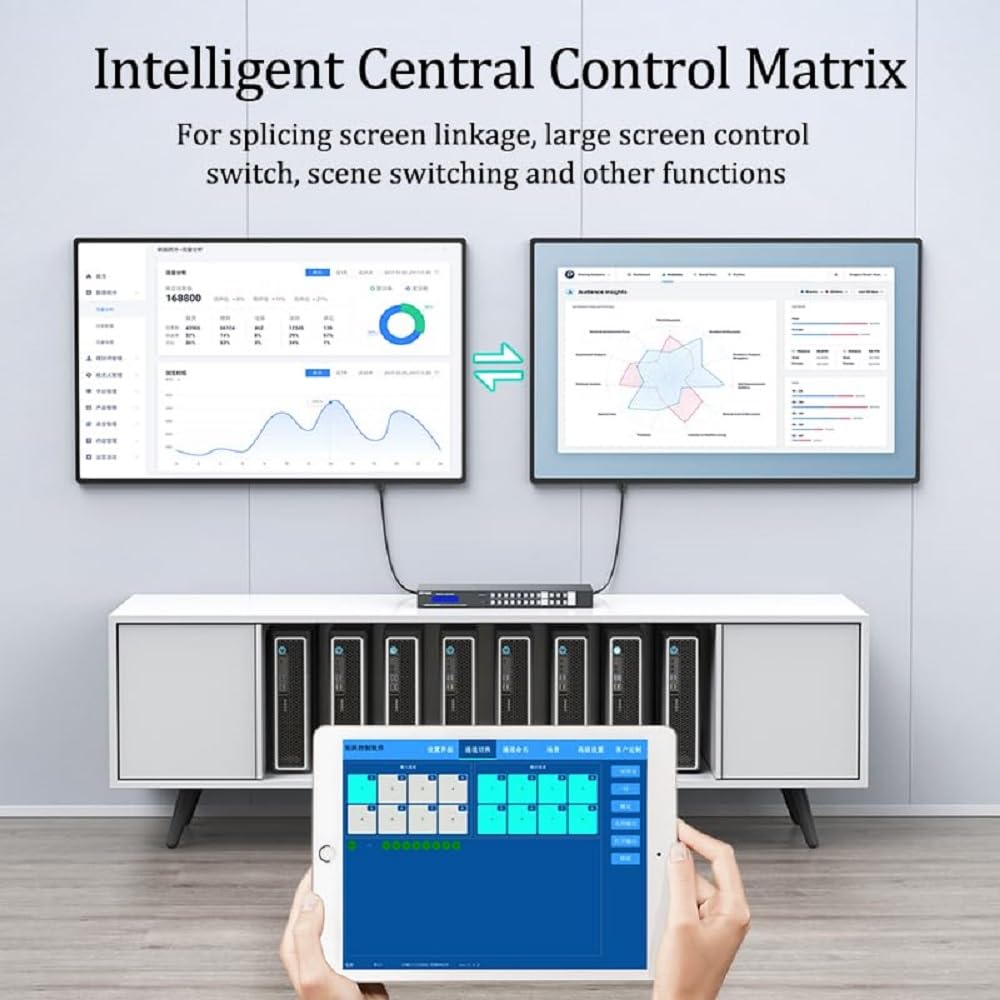

- Multiple Control Mode: Button, IR Remote, RS232 Serial Port, Local Lan port control, WEB control, APP control for Android.
- Use high-quality HDMI 1.4 cable, transmission distance up to 114FT (input maximum 49ft, and output maximum 65ft).
- Power-off memory function: automatically restore the original status after power resumption

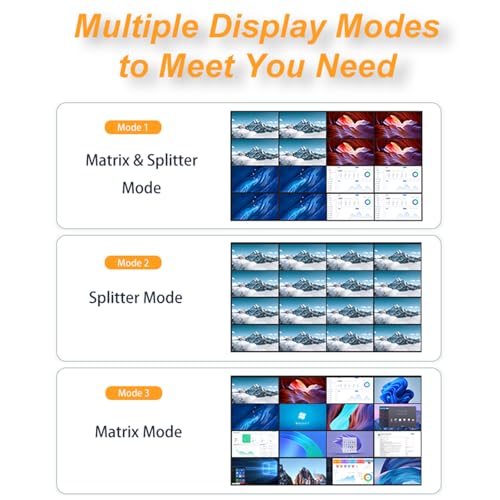

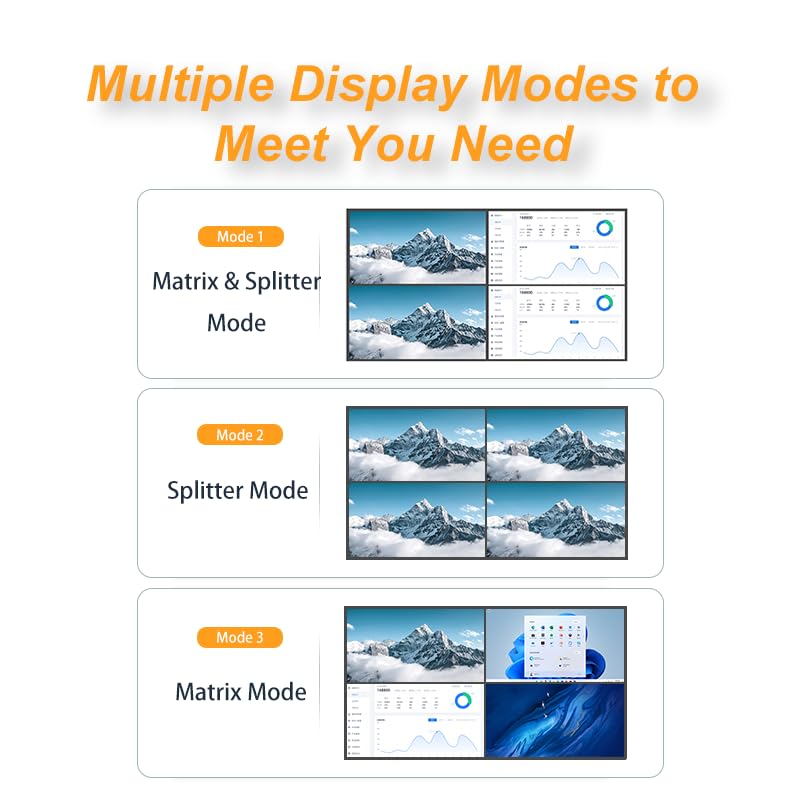

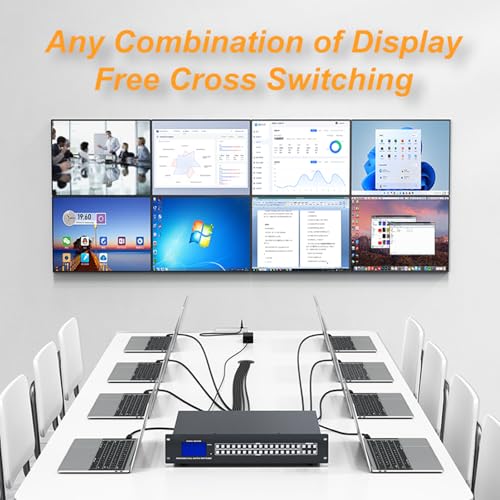

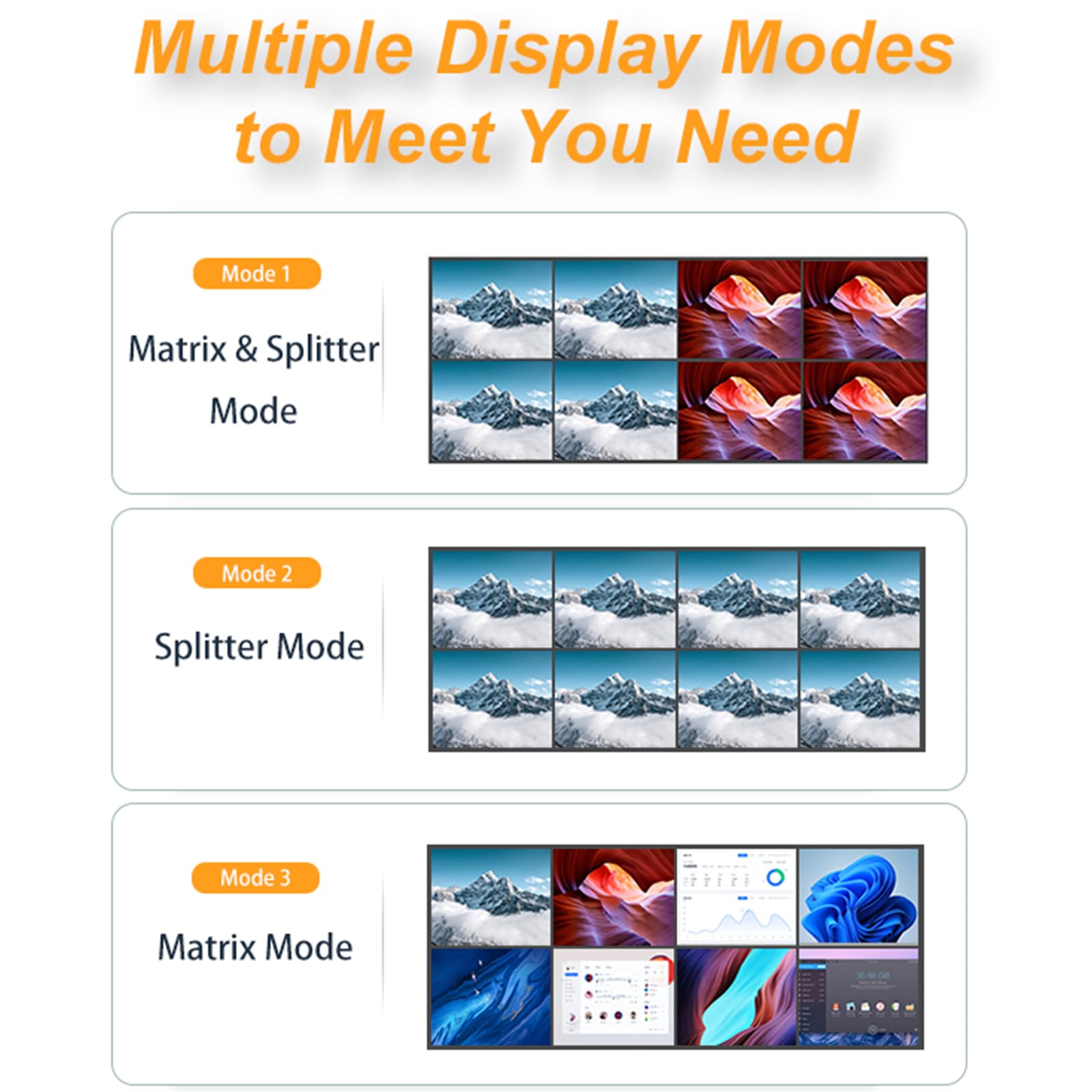

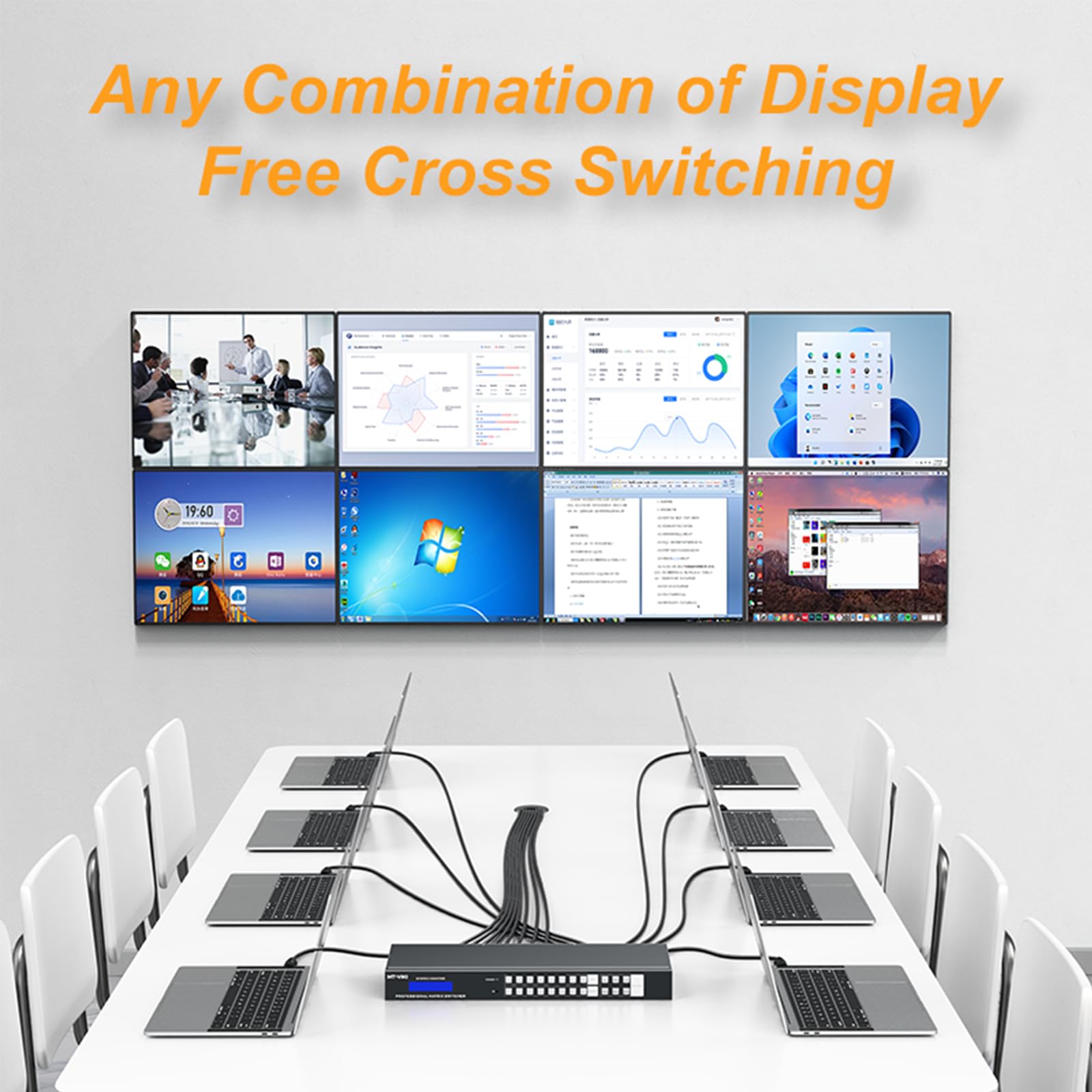

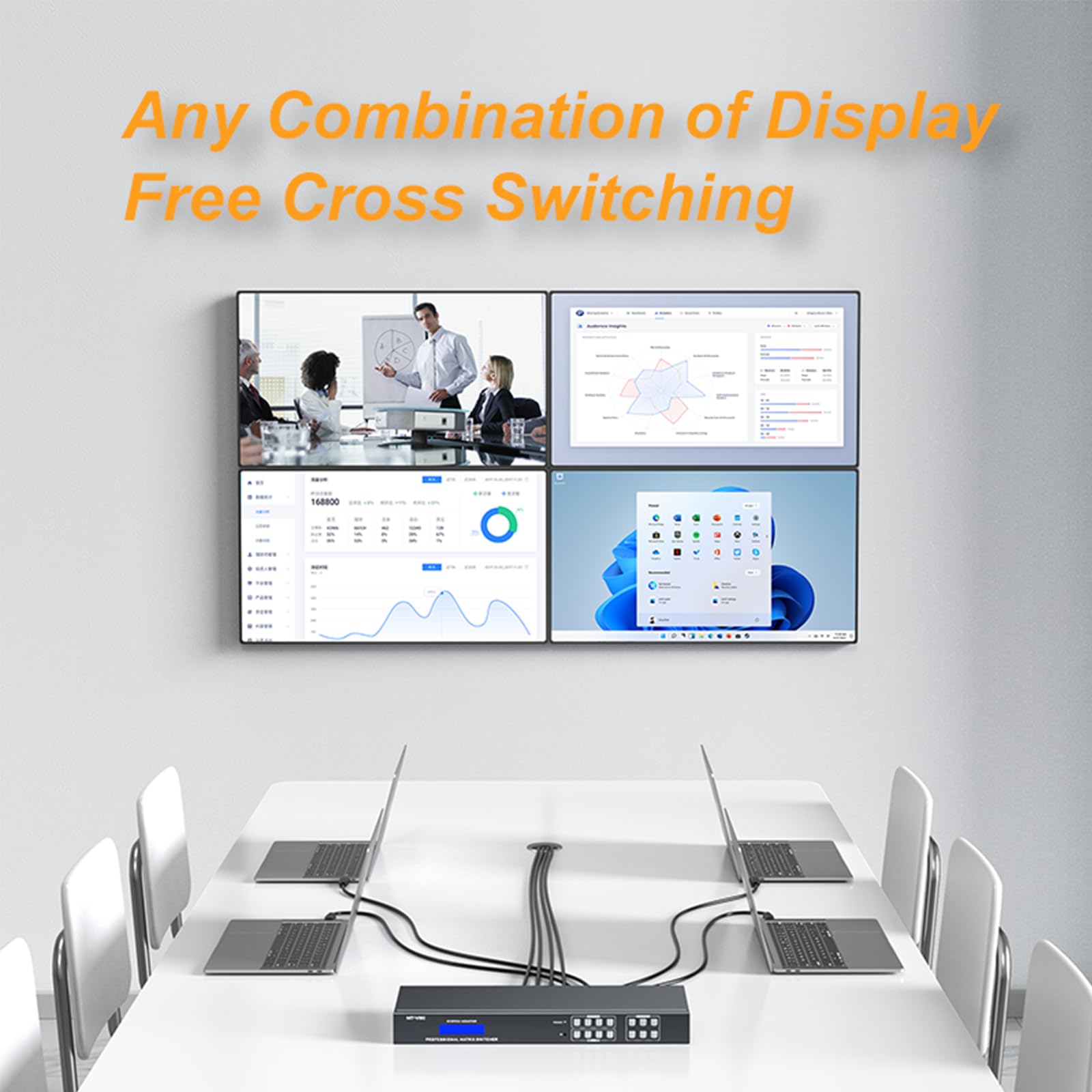

Various display modes meet your need:
1. Matrix Mode:
Independently direct individual input signals to each display.
2. Splitter Mode:
Mirror the same signal to all output.
3. Matrix & Splitter Mode:
Part of displays share the same input signal.
Multiple Intelligent Controls：
- Button
- IR Remote
- RS232
- LAN
- WEB
- APP for Android
- NOTE: The settings and instructions for all control modes are explained in details in the user manual.
Packing List:
- 1 x 4K HDMI Matrix 4x4 (Size: 17 x 5.75 x 1.75 inch, 1U Height)
- 1 x Power Adapter
- 1 x RS232 Cable
- 1 x IR Remote
- 1 x Rack Mount & Screw
- 1 x QR Code of User Manual & Control Software

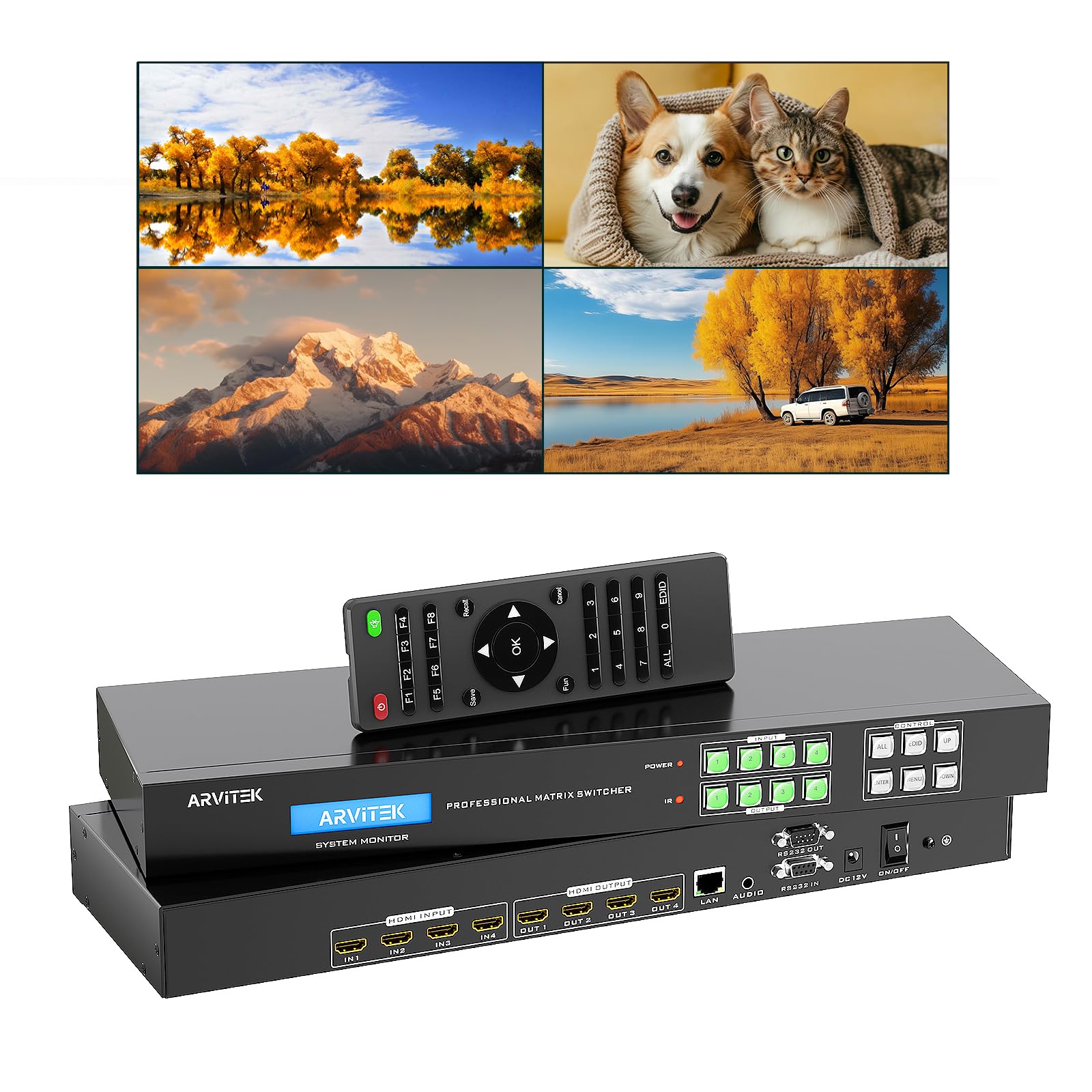

 4K 4x4 HDMI Matrix Switch for 1U Rack
|

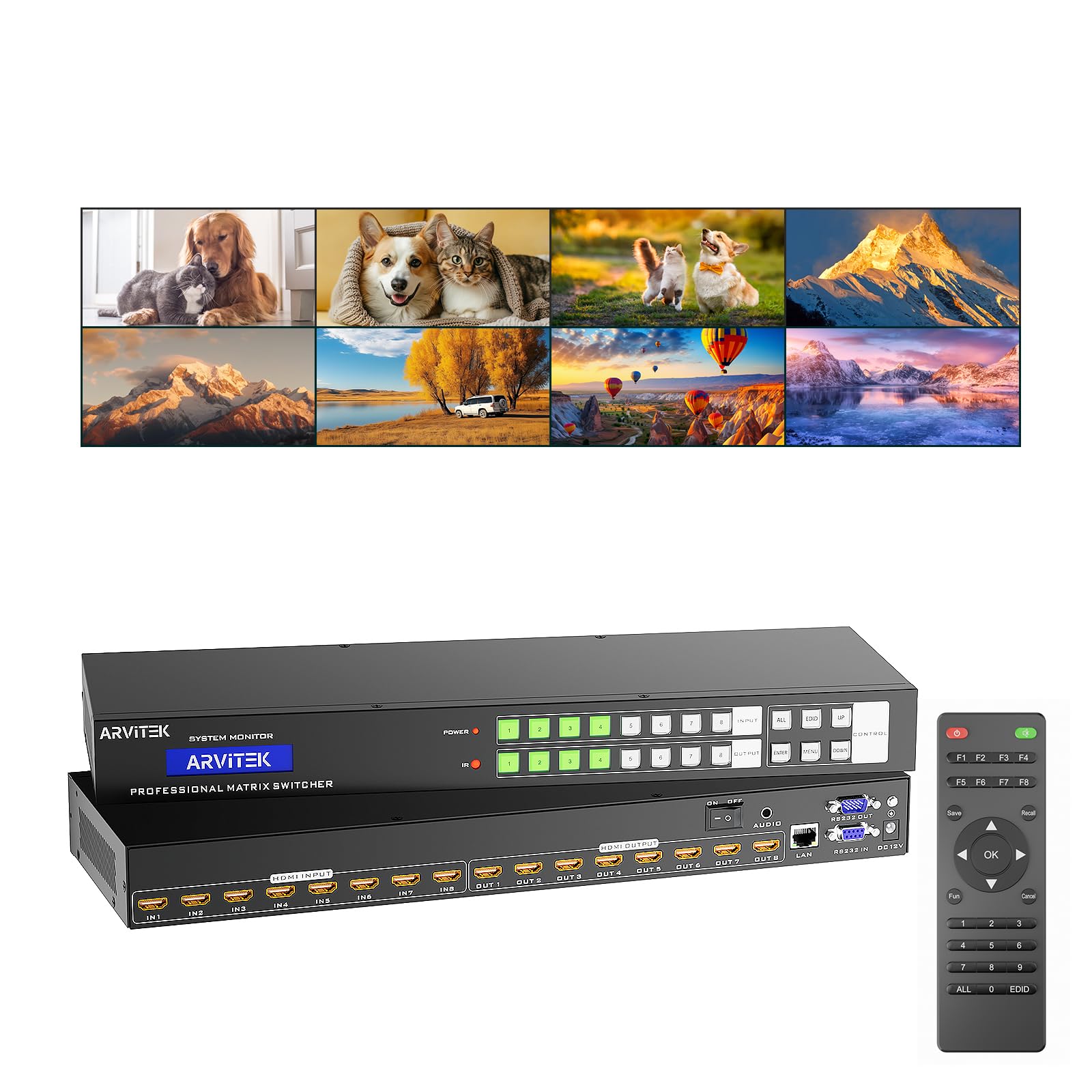

 4K 8x8 HDMI Matrix Switcher for 1U Rack
|
 4K HDMI Matrix Switcher 16x16 for 2U Rack
|
 Updated 4x4 HDMI Matrix Switch 4K w/Web GUI, HDMI Video Wall Controller 2x2
|
 Updated 8x8 HDMI Matrix Switch 4K w/Web GUI, HDMI Video Wall Controller 4x2/2x4
|
 4K HDMI Video Wall Controller 2x2
|
|
|---|---|---|---|---|---|---|
| Customer Reviews |
18
|
18
|
18
|
6
|
6
|
3
|
| Price | $125.99 | $325.99 | $899.99 | $299.99 | $499.99 | $85.00 |
| Input port | HDMI * 4 | HDMI * 8 | HDMI * 16 | HDMI * 4 | HDMI * 8 | HDMI * 1 |
| Output port | HDMI * 4 | HDMI * 8 | HDMI * 16 | HDMI * 4 | HDMI * 8 | HDMI * 4 |
| 3.5mm Audio Output | ✓ | ✓ | ✓ | ✓ | ✓ | no data |
| Resolution | 4K@30Hz | 4K@30Hz | 4K@30Hz | 4K@30Hz | 4K@30Hz | 4K@30Hz |
| Rackmount Height | 1U | 1U | 2U | 1U | 1U | no data |
| Display Mode | Matrix & Splitter | Matrix & Splitter | Matrix & Splitter | Split, Splicer, Seamless matrix, Bypass matrix | Video wall controller & Seamless HDMI Matrix | Splicing |
- This hdmi matrix 4 in 4 out supports resolution up to 4K 3840*2160@30Hz, 8KV ESD protection. Support Local LAN control from other computer by installing MatrixController
- This HDMI Matrix 4x4 routes 4 HDMI input source to share 4 HDMI output source. WHEN to switch OUT 4 for 3.5mm audio extraction, you will get the audio out. Mirror the samee signal to all output or independently direct individual input signals to each display for a personal customized HDMI routing matrix.
- This HDMI matrix supports resolution up to 3840*2160@30Hz and downscaling, 8KV ESD protection.After installing MatrixController, you can control the Matrix via another PC. HDMI Matrix switcher 4x4 fits for standard 1U 19 inch Cabinet/Rack.
- Compatible with windows Linux and other system,PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format. Support 5 ways switch,pannel button, IR,RS232, Lan or Web Gui.
- Package Included: 1 x HDMI Matrix switch 4x4, 1 x RS232 Cable, 1 x IR Remote, 1 x Rack ears & screws, 1 x Power cable & adapter, QR code for user manual and software.
| Color | Black |
| Connector Type | HDMI |
| Brand | Arvitek |
| Compatible Devices | Monitor, Television |
| Cable Type | HDMI |
